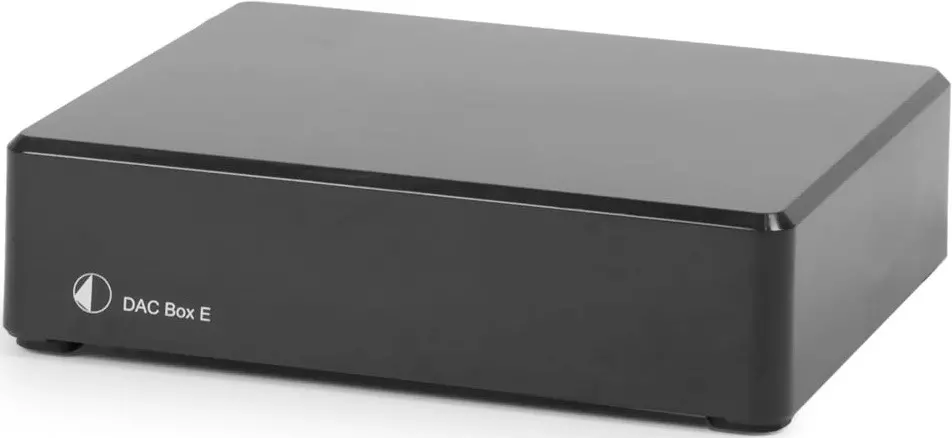

Pro-Ject DAC Box E Nadelbürste

DAC 24bit / 192kHz

The DAC Box E is an excellent DAC for digital audio sources that have an optical or coaxial connection.Despite its low price, it sounds exceptional and supports HD music data up to 24/192kHz.

The DAC Box E design uses high quality components such as precision D/A converter chips and a low noise output stage.This is the perfect upgrade for any digital stereo audio source, especially CD, BD or DVD players, or set top boxes or TVs!The entire audio circuit design is perfectly linear with low output impedance to avoid negative interference from cables or preamps.

Thanks to its audio performance, the DAC Box E is a DAC with an excellent Performance / Price ratio!

BENEFITS

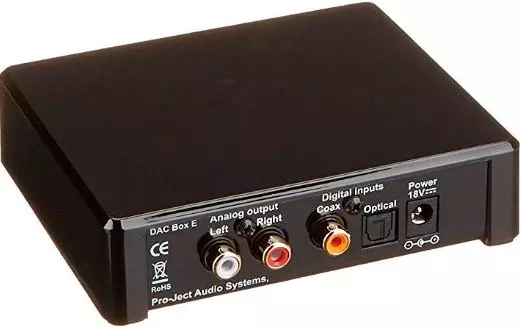

• Coaxial (RCA) and optical (Toslink) S/PDIF input
• SMD circuitry
• Special low noise components
• Internal metal shielding
• Small size allows installation close to the source
• Gold-plated RCA
• Line level signal output: 1 pair RCA
• Output Voltage:0.7 Vrms
• Digital Inputs: 1 x coaxial (S/PDIF), 1 x optical (TOSlink®)
• D/A converter:Texas Instruments TLV320DAC23 Cirrus Logic CS4344. 24-bit / 192 kHz
• Supported audio format: PCM (LPCM) (Stereo only)
• Sample rates: 44.1 kHz, 48 kHz, 96 kHz and 192 kHz optical and coaxial inputs (coaxial only)
• Power: 18 V / 500 mA DC
• Power: 200 mA DC, <1 W standby
• Dimensions:W x H x D 120 x 32 x 100 (106) mm
• Weight:250 g without adapter
