Thorens Mm-008 Adc

Audiophile designed MM/MC preamplifier with USB and AD converter Compact Thorens MM-008 ADC phono preamplifier Includes a 24bit/96kHz A/D converter and USB port that allows high quality recording from vinyl to digital Traditional Thorens top quality design Brushed aluminium front panel ...

Mehr lesen ID: 282648 EAN: 4260270220881

Bestpreis-Garantie

Wenn Sie dieses Produkt anderswo billiger finden, gleichen wir die Differenz aus!
Weitere Informationen

Status

Neu

Verfügbarkeit

Die Woche

Preis

410,99 €

inkl. 19 % MwSt., zzgl. Versandkosten

Verfügbarkeit

Die Woche

Weihnachtslieferung:

Artikel, die bei unserem Lieferanten auf Lager sind, können bis Weihnachten geliefert werden, wenn Sie die Ware bis 8. Dezember bestellen. Wenn Sie die Ware später bestellen, können wir das Lieferdatum leider nicht garantieren..

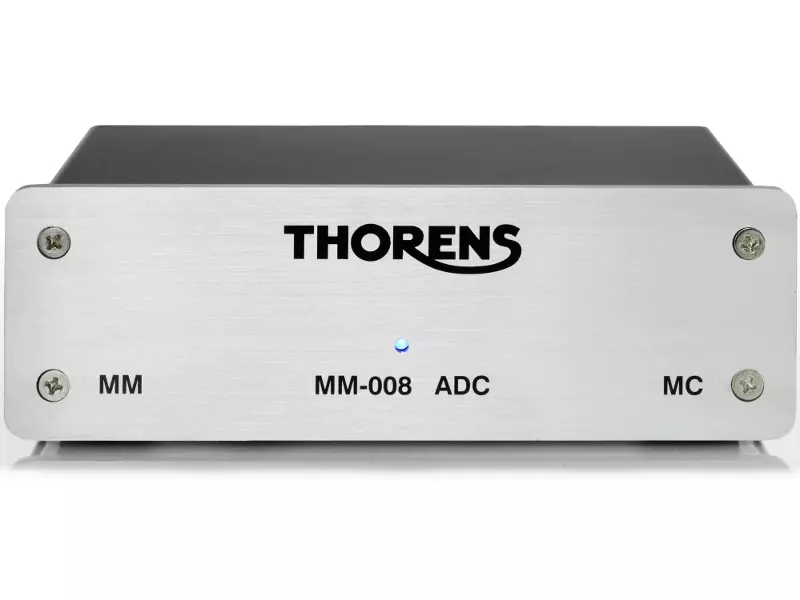

Audiophile designed MM/MC preamplifier with USB and AD converter

- Compact Thorens MM-008 ADC phono preamplifier
- Includes a 24bit/96kHz A/D converter and USB port that allows high quality recording from vinyl to digital
- Traditional Thorens top quality design

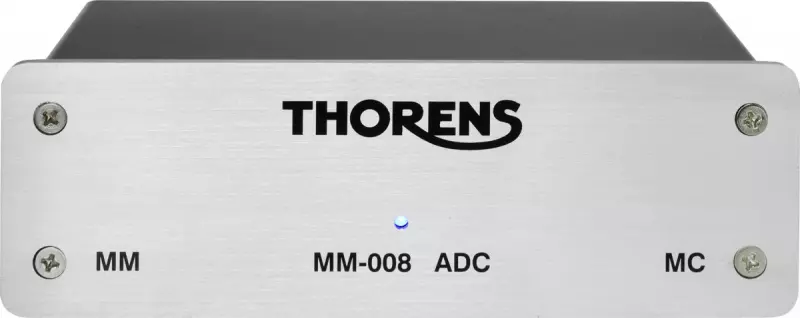

- Brushed aluminium front panel

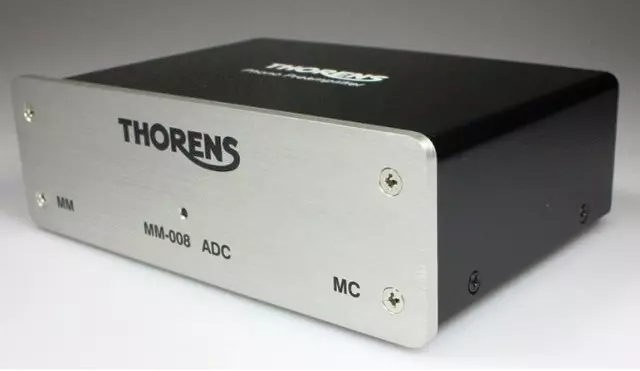

- All-metal housing provides quality shielding
- Separate pairs of input jacks for MM and MC cartridges
- Includes a set of capacitive adapters to match the input impedance to the MC transmission
- Ideal value for money
- Colour: silver

Specifications:


Operation	MM/MC (switchable)
Gain at 1 kHz	40 dB (mm), 60 dB (MC)
Input impedance	47 kOhm + 220 pF fixed / for MM / 47 kOhm + 1 nF variable via external capacitive connectors / for MC /
Frequency range Frequency range (-3 dB)	20 Hz - 20 kHz 10 Hz - 50 kHz
RIAA curve accuracy	± 0.3 dB
THD + N	<0.013% (MM) / <0.055% (MC)
Signal to noise ratio	> 86 dB (MM) / > 72 dB (MC)
Crosstalk	40 dB
Input sensitivity	3.29 mVrms at -10 dBV (316 mVrms) output for MM mode 0.325 mVrms at -10 dBV (316 mVrms) output for MC mode
Maximum output voltage	482 mVrms at 5 mVrms input (1 kHz)
Output impedance	47 Ohm

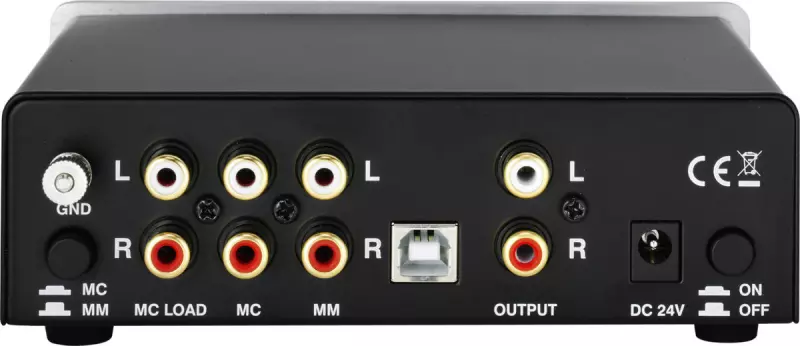

Input connectors	3 pairs of RCA (cinch) connectors (left/right channel)
Output connectors	1 pair of RCA (cinch) connectors (left/right channel) 1x USB
A/D converter	Tenor TE7022L 24bit Delta Sigma
Sampling Frequency	8, 16, 32, 44.1, 48, 96 kHz
USB connection	USB 2.0, fully compatible with USB 1. 1
Supported OS	Windows® 8/7 / Vista / XP, Mac OS®
Source	External 24 V DC
Consumption	3.4 W, 15 mA
Dimensions (h x w x d)	50 mm × 150 mm × 117 mm
Weight	504 g (without external power supply)
